1080P 2MP Video Digital Optical Converter AHD CVI TVI Compliant With RS485 Data

Name: 1080P 2MP Video Digital Optical Converter AHD CVI TVI Compliant With RS485 Data
Brand: Olycom
Price: 1 USD

Quality 1080P 2MP Video Digital Optical Converter AHD CVI TVI Compliant With RS485 Data for sale

Brand Name : Olycom

Model Number : OM615-4V↑1D↓WT/R

Certification : CE RoHS FCC

Place of Origin : Shenzhen, China

MOQ : 1 Pair

Price : Negotiable

Payment Terms : T/T, Paypal

Supply Ability : 1000 Pairs per week

Delivery Time : 3~5 working days

Packaging Details : 1 pair in 1 carton. 1.26 kg/pair

Distance : 20Km max on SMF

Format : HD Video AHD CVI TVI CVBS

Interface : FC, ST/SC optional

Data Rate : RS485, 115Kbps

Voltage : 5V1A

Size : 179mm*128.5mm*28.5mm

Contact Now

1080P AHD CVI TVI CVBS Data RS485 Video Media Converter

Product Overview

OM615-4V↑1D↓WT/R AHD/TVI/CVI optical video transmitter and receiver transmits 4ch AHD/HDTVI/HDCVI video signals and 1ch RS485 data on optical fiber.
It is designed to transmit AHD/HDTVI/HDCVI high-definition composite video for long-distance. 720P, 960P, 1080P and other video signals are adaptive.
It achieves high-definition video transmission without delay and compression, with high reliability. Data, contact closure, audio and other signals are optional.

Key Features

Robust metal casing
Lightning-proof solution
Low optical link loss – max 30dB
Without EMI, RFI and ground loop
Bi-di transmission on 1 fiber with WDM
Hot plug-and-play with switch power supply
Available in standalone and 3U rack systems

Specification

Optical
Wavelength	1310nm/1550nm
Output Power	-8~3dBm
Optic fiber	Single mode:20Km/40km, multimode:550m
Receiving sensitivity	30dBm
Interface	FC standard, ST/SC optional
Video
Channel Quantity	4ch, from camera to control center
Video Input /Output Amplitude	typical 1Vpp (peak-to-peak), peak 1.2Vpp
Video Input Impedance	BNC 75Ω (unbalanced)
BNC 75Ω (unbalanced)	64MHZ
Digital Bandwidth	512MHZ
Differential Gain Phase	10%-90% APL DG<1% (typical)
Video Bit Width	8 bit
S/N ratio	>70dB
Interface	BNC
RS485 Data
Channel Quantity	1ch, from control room to camera
Data Rate	115Kbps
Electrical. Environmental. Mechanical
Operating voltage	DC 5V1A
Operating temperature	-20℃～+70℃
Storage temperature	-45℃～+85℃
Weight	0.40kg/piece (Net Weight), 1.26 kg/pair (Gross Weight)
Dimension-standalone	179mm ×128.5mm ×28.5mm

Application

Expressway security protection and toll station system
City traffic monitoring system
Building and campus monitoring system
Industrial monitoring (airport, chemical plant, railway, etc.)
Military monitoring (frontier defense, national defense)
Electronic power oil field, TV station program broadcasting
Gymnasium (live video and audio transmission)

1080P 2MP Video Digital Optical Converter AHD CVI TVI Compliant With RS485 Data

Ordering Details

OM615-4V↑1D↓WT/R-FC20	4ch video Tx, 1ch RS485 data Rx, singlemode, single fiber, 20Km, FC
OM615-4V↑1D↓MT/R-FC5	4ch video Tx, 1ch RS485 data Rx, multi-mode, single fiber, 0.5Km, FC

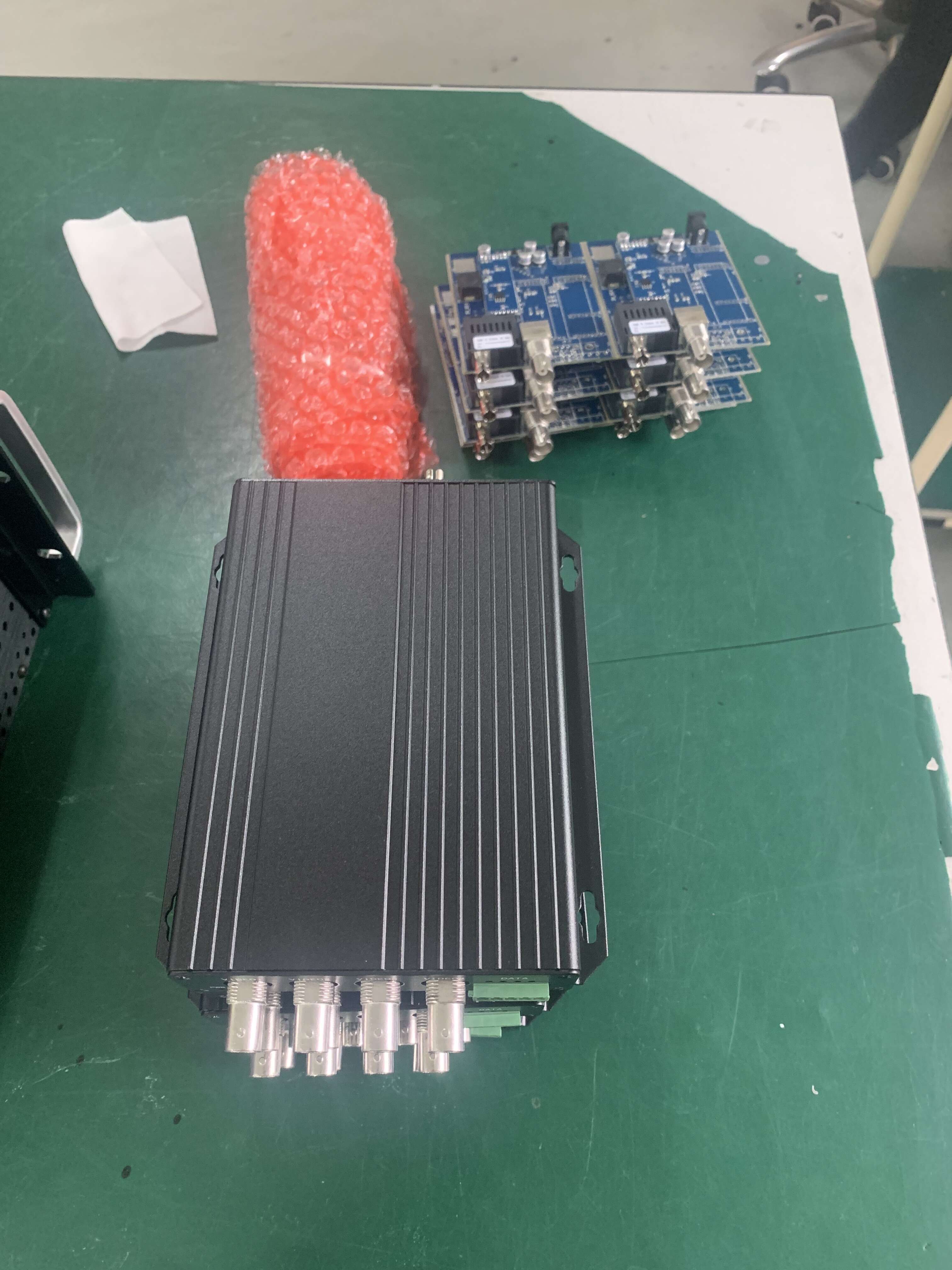

Product Photos
